YQGN850 Series Stainless Steel High Temperature Dry Sealed High Pressure Submersible Motor
This series of motors have the advantages of high efficiency, energy saving, low noise, low vibration, low temperature rise and reliable operation. The power level of the motor is in accordance with IEC standard, the protection level of the motor shell is IP68, the rated voltage of the motor is manufactured according to 380V, 660V, 6000V, 10,000V, the rated frequency is 50Hz, the working system is S1, the insulation level is F, and it adopts the vacuum pressure impregnation process of VPI, which is with reliable waterproof performance.
YQGN850 submersible motor is dry type fully enclosed submersible three-phase asynchronous motor. This submersible motor can be submerged in water for a long time, and after assembled with submersible pump into a whole machine, it has a series of incomparable advantages of traditional units:
Technical Advantages：
1、Because the motor and the pump form a single unit, there is no need to carry out labor-consuming and time-consuming motor-drive mechanism-pump assembly process on the axis at the installation site, and the site installation is convenient and quick.
2、Due to submerged in water operation, can greatly simplify the civil engineering of the pumping station, reduce the installation area, saving 30-40% of the project cost.
3、Low noise, no high temperature in the pumping station, improve the operating environment, and can be built according to the requirements of the whole underground pumping station, to maintain the environmental appearance of the ground.
5、Convenient operation, no need to lubricate the rubber bearings of the pumps before start-up, easy to control in the vicinity or remote control.

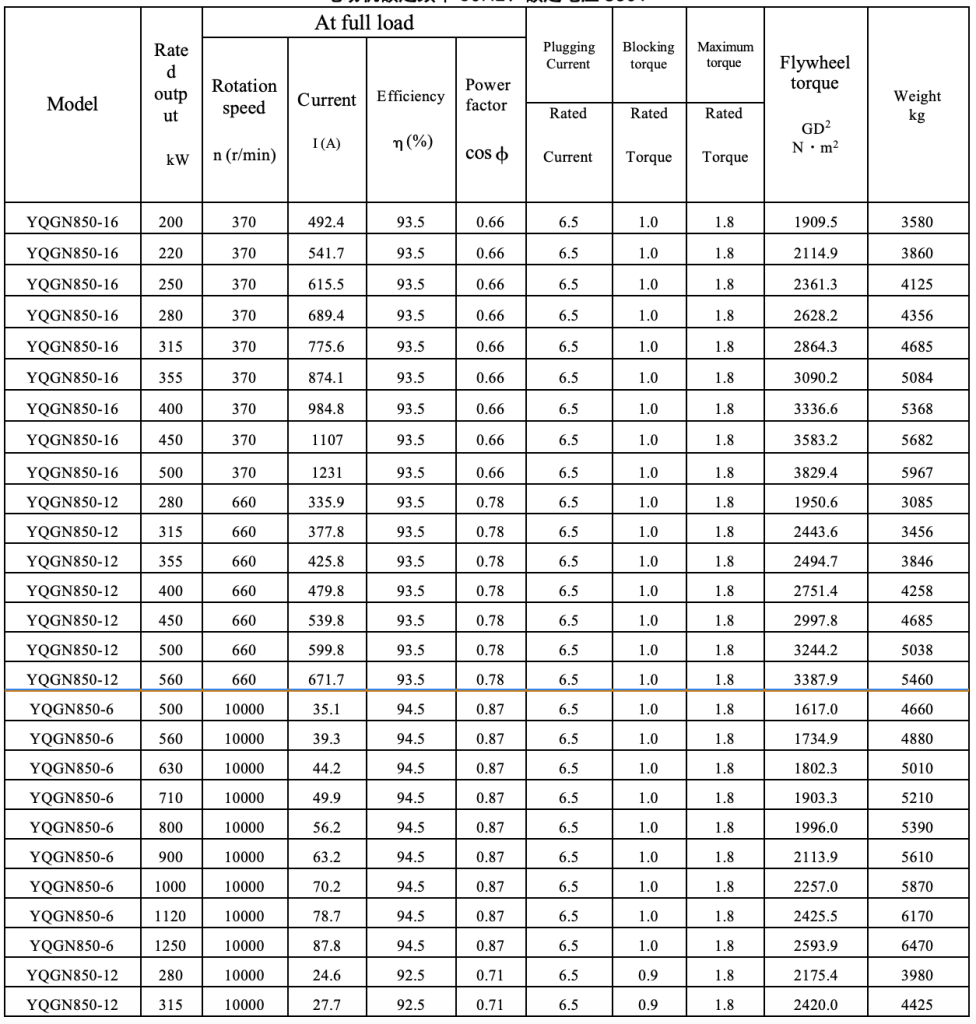

Performance Parameters：
Product usage：
1.Mainly used for: axial mixed-flow submersible electric pumps, sewage dirt submersible electric pumps supporting; a variety of underwater equipment propulsion power source;
2.Mainly used in ：flood control and drainage,urban sewage, agricultural drainage and irrigation, sponge city, well drainage, living water supply, sewage treatment and other fields.
